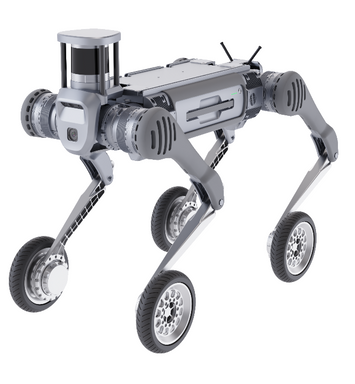

Quadruped Robot B2-W

The Quadruped Robot B2-W is an enhanced quadruped robot platform designed for operation in extreme environments. Featuring IP67 ingress protection, it is capable of operating in heavy precipitation, muddy conditions, and submerged to depths of 1 meter. The B2-W utilizes high-precision sonar, dual-photo thermal imaging sensors, and stabilized cameras to achieve underwater obstacle identification and all-weather surveillance. High-torque joint motors provide a payload capacity of 25KG, enabling operation on challenging terrains and heavy-load transportation. The modular structure facilitates the rapid integration of robotic arms, gas sensors, and other equipment. An open API allows for extensive customization, making the B2-W suitable for marine exploration, flood rescue, industrial inspection, and specialized security applications.

Quadruped Robot B2-W
1550nm Distributed Feedback(DFB) Laser Source
Features
  • Waterproof and Rugged
  • Advance Sensing
  • All-Weather Capability
  • High Payload
  • Modular Design
  • Open API
Applications
  • Marine Exploration
  • Underwater and Flood Rescue
  • Industrial Extreme Environment Operations
  • Industrial Inspection
  • Special Security and Energy Response
  • Scientific Research and Modular Expansion
Specifications
Parameter Unit Specifications
Part No. B2-W
Size(Standing) mm 1098×550×758
Size(Lying Prone) mm 950×550×450
Weight KG 75(Total weight battery included)
Battery Capacity 2kWH，Voltage 58V
Endurance Ability 35Max endurance of 50km with 40kg load
Max Speed 20km/h
Max Horizontal Pulling Force KG 100
Ditch Jumping Width m 2
Max Load(Standing) KG 120
Load(Walking) KG 40
Wheel Diameter mm 225
Max Wheel Speed rad/s 57
Max Wheel Torque N.m 50
Continuous Stair Climbing cm Stairs of 20~25
Operating Temperature ℃ -20 ~ 55
Climbing Angle ° > 45
Ingress Protection IP67
Control & Perception Standard: Intel Core i5 (Platform Function) ,Intel Core i7(User Development) Optional: Intel Core i7 and Jetson Orin NX (Maximum up to 3 devices)
