1940nm QCW Thulium Fiber Laser Source TFL-50/500-QCW

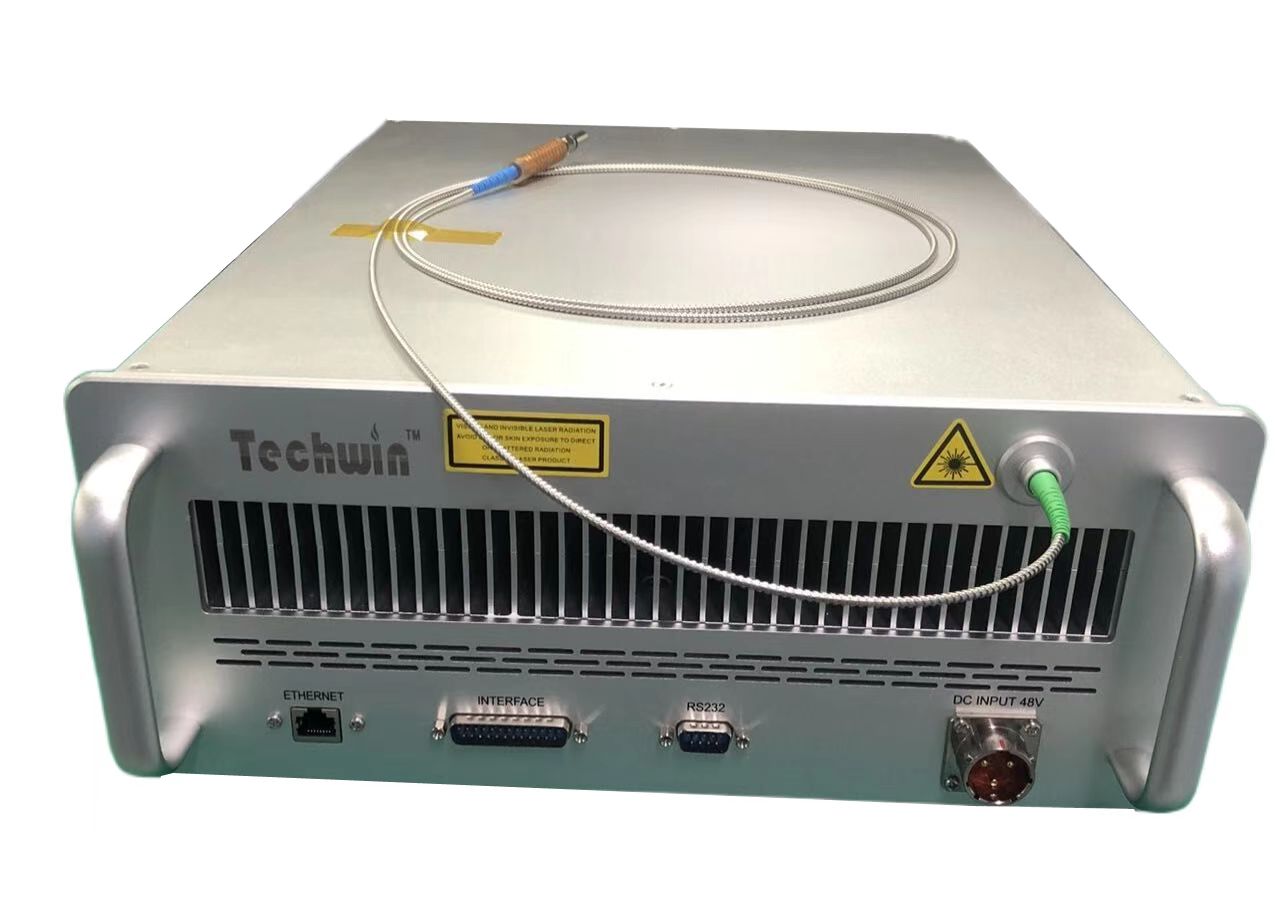

Techwin TFL-50/500-QCW Thulium quasi-cw fiber laser is new compact thulium fiber laser module at 1940nm wavelength. Module operates in millisecond-pulse mode with peak power up to 500W, average power up to 50W, and pulse energy up to 5J. The module is air-cooled and can be easily integrated in laser system.
These compact energy efficient and reliable lasers are used in a diverse range of industrial, scientific and medical applications including laser pumping, welding of transparent polymers and a variety of surgical applications such as open, laparoscopic and endoscopic inclusion, excision, resection, ablation, vaporization, coagulation and hemostasis of soft tissue in urology, urinary lithotripsy and general surgery. Special models for integration into OEM medical equipment are available.
- Wavelength 1940nm
- Maximum Peak Power 500W
- Maximum Average Power 50W
- Pulse Energy up to 5J
- Single-mode or Multi-mode Beam Quality
- Scientific, Industrial and Medical Application
- Open and Endoscopic Surgery in Urology
- Welding of Transparent Polymers
- Lithotripsy and Percutaneous Urinary Lithotripsy
- Mid-IR Solid State Laser Pumping
- General Surgery
| Parameter | Unit | Specifications | ||
| Part No. | TFL-50/500-QCW | |||
| Wavelength | nm | 1940 | ||
| FWHM | nm | <2 | ||
| Mode of Operation | Pulsed/CW | |||
| Pulse Repetition Rate | Hz | 1-2000 | ||
| Average Power | W | 50W = 0.025J x 2000 Hz and 5J x 10 Hz | ||
| Max Peak Power | W | 500 | ||
| Pulse Energy | J | 0.025-5 | ||
| Pulse Width | ms | 0.2-50 | ||
| Power Tunability | % | 10-100 | ||
| Power Stability | % | +-1 | ||
| Aiming Beam: | Green 500-550nm, Power adjustable 0-5mW | |||
| Output Fiber | 25um fiber with SMA905 as a standard output end | |||
| Single-mode Beam Quality M2 | <1.20 | |||
| Size( W*D*H) | mm | 360*490*160 | ||
| Weight | KG | <20 | ||
| Cooling | Air-cooled | |||
| Power Voltage | VDC | 36-48 | ||
