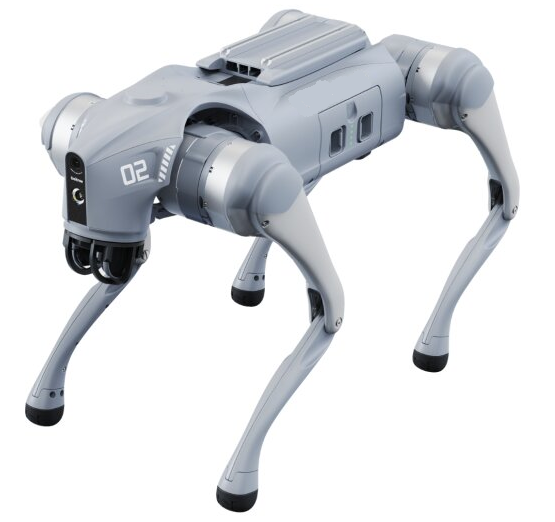

Quadruped Robot Go2
The Quadruped Robot Go2 a high-performance quadruped robot platform designed for advanced applications. Integrating proprietary joint motors with a 15m/s response speed, the Go2 excels in dynamic balancing and multi-terrain locomotion, including gravel and slopes. Equipped with LiDAR and depth cameras, it achieves 360° environmental perception and autonomous navigation. An open SDK allows for extensive secondary development, making the Go2 suitable for research, security inspection, education, and domestic applications. Its lightweight yet robust design optimizes strength and endurance, while an interactive lighting system enhances user interaction.
Quadruped Robot Go2
Features
- High Performance Motion
- Advanced AI Perception
- Versatile Terrain
- Open SDK
- Light Weight
- Robust
- Interactive Lighting System
Applications
- Security Inspection
- Scientific Research
- Emergency Rescue
- Education
- Home Services
- Film and Television Entertainment
Specifications
| Parameter | Specifications | ||
|---|---|---|---|
| Part No. | Go2 Air | Go2 Pro | Go2 EDU |
| Stand Height | 70cm×31cm×40cm | ||
| Weight(With Battery) | About 15kg | ||
| Material | Aluminum alloy + High strength engineering plastic | ||
| Voltage | 28V~33.6V | ||
| Peaking Capacity | About 3000W | ||
| Payload | ≈7kg（MAX ~ 10kg） | ≈8kg（MAX ~ 10kg） | ≈8kg（MAX ~ 12kg） |
| Speed | 0~2.5m/s | 0~3.5m/s | 0~3.7m/s（MAX~5m/s |
| Max Climb Drop Height | About 15cm/s | About 16cm | |
| Max Climb Angle | 30° | 40° | |
| Basic Computing Power | No | 8-core High-performance CPU | |
| Peak Joint Torque | No | About 45N.m | |
| Range of Motion | Body：-48~48° Thigh：-200°~90° Shank：-156°~-48° | ||
| Intra-joint Circuit (knee) | Yes | Yes | Yes |
| Joint Heat Pipe Cooler | Yes | Yes | Yes |
| Super-wide-angle 3D LIDAR | Yes | Yes | Yes |
| Wireless Vector Positioning Tracking Module | No | Yes | Yes |
| HD Wide-angle Camera | Yes | Yes | Yes |
| Foot-end Force Sensor | No | No | Yes |
| Basic Action | Yes | Yes | Yes |
| Auto-scaling Strap | No | Yes | Yes |
| OTA Upgrades | Yes | Yes | Yes |
| RTT2.0 Image Transmission | Yes | Yes | Yes |
| Graphical Program | Yes | Yes | Yes |
| Front Lamp | Yes | Yes | Yes |
| WiFi6 with Dual-band | Yes | Yes | Yes |
| Bluetooth 5.2/4.2/2.1 | Yes | Yes | Yes |
| 4G | No | Yes | Yes |
| Voice Function | No | Yes | Yes |
| ISS 2.0 | No | Yes | Yes |
| Intelligent Detection and Avoidance | Yes | Yes | Yes |
| Charging Pile Compatibility | No | No | Yes |
| Secondary Development | No | No | Yes |
| Handheld Controller | Optional | Standard | |
| Docking Station | No | Optional Nvidia Jetson Orin | |
| Smart Battery | Standard（8000mAh） | Long endurance（15000mAh） | |
| Endurance | About 1-2h | About 2-4h | |
| Charger | Standard（33.6V 3.5A） | Fast charge（33.6V 9A） | |
