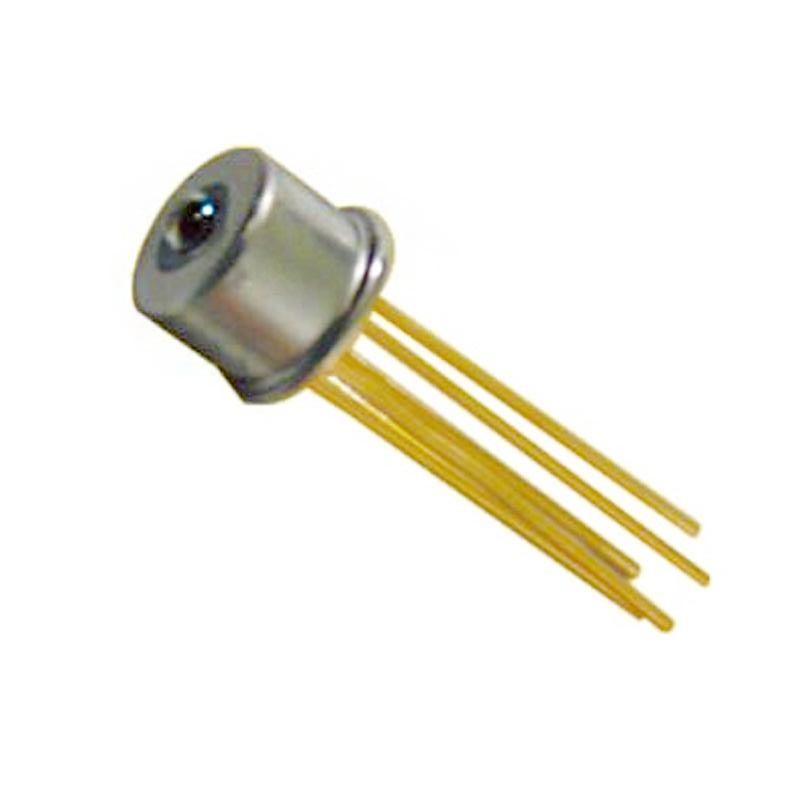

TO-Can Laser Diode
Techwin TO-Can Laser Diode integrated with advanced packaging technology, can incorporate a thermoelectric cooler (TEC) and a negative temperature coefficient (NTC) thermistor. The TEC enables high-precision temperature control, resulting in lasers with high power and stable wavelength. We also offer heated TO packages suitable for operation in the -10°C to 50°C range. These lasers feature collimated light output.
Key Features:
- Integrated Thermoelectric Cooler (TEC)
- Stable Signal
- Low Threshold, High Output Power
- Low Power Consumption
- Wide Operating Temperature Range: -40°C to 70°C / -10°C to 50°C
- High Reliability
- Collimated Output
- Customizable Specifications
Applications
- Household Gas Monitoring
- Compact Gas Detection Modules
- Open-Path Gas Detection Systems
- Industrial Sensor Applications
| Central wavelength | Laser type | Detected Gases |
| 760nm | VCSEL/DFB | Oxygen |
| 1273nm | DFB | Hydrogen Fluoride |
| 1392nm | DFB | Water Vapor |
| 1512nm | DFB | Ammonia |
| 1532nm | DFB | Acetylene |
| 1567nm | DFB | Carbon Monoxide |
| 1578nm | DFB | Hydrogen Sulfide |
| 1620nm | DFB | Ethylene |
| 1653nm | DFB | Methane |
| 1676nm | DFB | Ethane |
| 1742nm | DFB | Hydrogen Chloride |
Ordering Information:
- Customized according to customer needs
