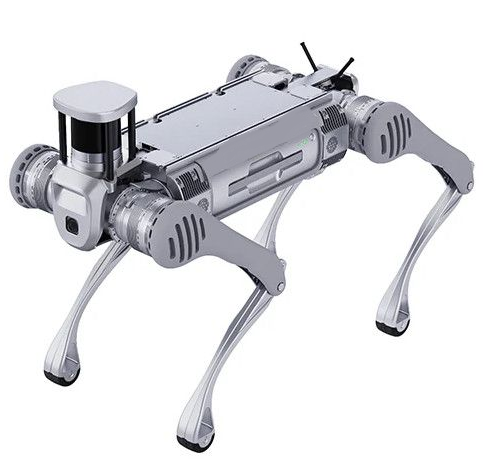

Quadruped Robot B2

The Quadruped Robot B2 is a quadruped robot platform designed for industrial and commercial deployment. It utilizes proprietary high-torque joint motors, providing a 20KG payload capacity and extended operational endurance. The B2 employs multi-sensor fusion, integrating 3D LiDAR, infrared thermal imaging, and HD cameras, to achieve accurate navigation and real-time situational awareness in complex environments. Its IP66-rated enclosure allows for operation in extreme weather conditions, facilitating field inspections, material transport, and equipment monitoring. The B2 features a modular design for rapid functional expansion and an open API for enterprise-level customization, enabling intelligent collaboration and efficient automation in energy, security, and emergency response sectors.

Quadruped Robot B2
1550nm Distributed Feedback(DFB) Laser Source
Features
  • High Performance
  • Extended Endurance
  • Advance Sensing
  • Rugged Design
  • Versatile Applications
  • Modular Expansion
  • Interactive Lighting System
  • Open API
Applications
  • Energy Industrial Inspection
  • Emergency Rescue
  • Logistics and Transportation
  • Security Patrol
  • Education
  • Scientific Research and Customized Development
Specifications
Stairs of 20~25
Parameter Unit Specifications
Part No. B2
Size(Standing) mm 1098×450×645
Size(Lying Prone) mm 880×460×330
Weight KG 60 Total weight (battery included)
Battery Capacity Battery capacity 45AH（2250WH), Voltage 58V
Endurance Ability Battery life 4-6H Walking without load > 5h, and the mileage > 20km Walking with 20kg load > 4h, and the mileage> 15km
Wheeled Foot Optional
Load(Standing) KG Max. 120
Load(Walking) KG ＞ 40
Continuous Stair Climbing cm
Single Obstacle Crossing cm Climb up and down stairs of 40 in forward direction
Climbing Angle ° ＞ 45
Operating Temperature ℃ -20 ~55
Running Speed m/s ＞ 6
Ditch Jumping Width m 0.5~1.2
Max Jump Distance m ＞ 1.6
Ingress Protection IP67
Control & Perception Standard : Intel Core i5 (Platform Function), Intel Core i7 (User Development) Optional : Intel Core i7 and Jetson Orin NX (Maximum up to 3 devices)
Sensing Sensor 3D LiDAR×1+ Depth camera×2+ Optical camera×2 (Varies with different configurations）
Interface 1000M-Base-Ethernet×4，USB3.0×4，12V×4，5V×1，24V×4，BAT×1
