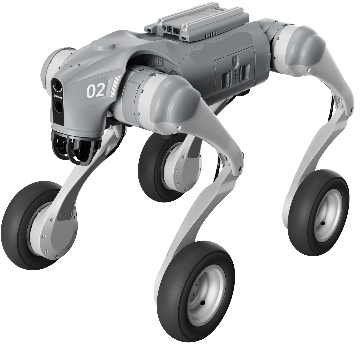

Quadruped Robot Go2-W
The Quadruped Robot Go2-W is a specialized quadruped robot designed for demanding outdoor and aquatic environments. As a ruggedized variant of the Go2 series, it achieves IP67 ingress protection, providing operational resilience in heavy precipitation, muddy terrain, and submerged conditions up to 1 meter. Integrated underwater sonar and anti-shake cameras facilitate obstacle recognition and navigation in turbid water. Upgraded high-torque joint motors enhance payload capacity to 3KG, suitable for payload transport and traversing uneven terrain. Modular interfaces support the integration of robotic manipulators, water quality sensors, and other specialized payloads, enabling applications in flood rescue, riverside surveys, marine research, and outdoor security monitoring. It features an intelligent perception system and enhanced environmental resilience, expanding the scope of automated systems in complex operational scenarios.
- Rugged and Waterproof
- Underwater Navigation
- Enhanced Payload
- Modular Expansion
- Versatile Applications
- Intelligent Perception
- Flood and Rainstorm Rescue
- River and Reservoir Inspection
- Environmental Monitoring and Data Collection
- Industrial Inspection
- Special Security and Operation
- Education and Scientific Research Experiments
| Parameter | Specifications | |
|---|---|---|
| Part No. | Go2-W | |
| Mechanical Specification | Size of Standing | 700mm×430mm×500mm |
| Weight(With Battery) | 18KG | |
| Electron Parameter | Voltage | 33.6V |
| Performance Parameters | Payload | 3KG |
| Speed | 0-2.5m/s | |
| Max Climb Drop Height | <70cm | |
| Max Climb Angle | 35° | |
| Basic Computing Power | 8-core High-performance CPU | |
| Joint Parameters | Aluminum Knee Joint Motor | 16PCS |
| Aluminum Knee Joint Motor | About 45N.m | |
| Tires | 7 Inch Pneumatic Tire | |
| Sensor Parameters | Super-wide-angle 3D LIDAR | YES |
| HD Wide-angle Camera | YES | |
| Feature List | Basic Action | YES |
| Upgraded Intelligent OTA | YES | |
| APP Support | YES | |
| Manual Controller | YES | |
| Front Lighting Lamp | YES | |
| WIF16&4G&Bluetooth | YES | |
| Voice Function | YES | |
| Secondary Development | YES | |
| Accessories | Expansion Module | Standard 100Tops Arithmetic Module (Orin NX) |
| Battery Type | Long Endurance (15000mAh) | |
| Endurance | 1.5-3 Hours | |
| Charger | Fast Charge (33.6V 9A) | |
| Warranty Period | 1 Year | |
